Cedar & Copper Beech Internal Decay Assessment — L&Q Group, Trafford

Client: L&Q Group — instructed by Macauley Schenk, Estate Officer, Trafford



Project Overview: Urban Tree Management was instructed by L&Q Group's Estate Officer for Trafford to carry out internal decay assessments on two significant trees on the L&Q housing estate — a mature Cedar at Edensor Drive, Hale, Altrincham and a mature Copper Beech at Marlborough Road, Urmston. Both trees had raised concerns about their internal structural condition. The investigations were carried out as a combined site programme.


Our Role: Two separate instrumental investigations were carried out — Arbotom impulse tomography on the Cedar at four assessment heights, and Rinntech Resistograph R650 resistance micro-drilling on the Copper Beech at four cardinal points. Acoustic mallet testing was carried out on both trees at all cardinal points prior to instrumental investigation.

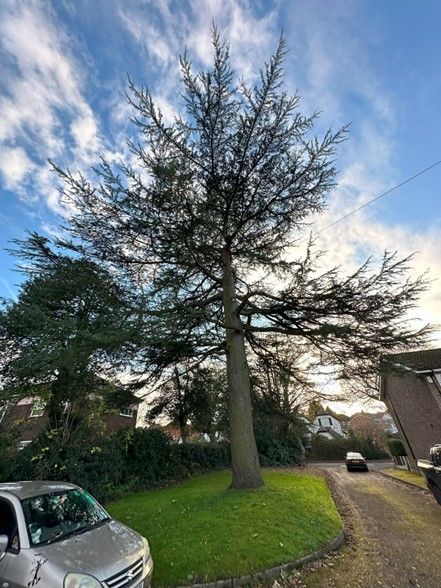

Cedar — Hale, Altrincham:

  • Arbotom impulse tomography at 10 cm, 75 cm, 140 cm, and 200 cm
  • Maximum strength loss 10% at 140 cm — not considered significant at any height
  • Minor to moderate resonance change on acoustic mallet testing attributed to loosened bark
  • Tree at full maturity — maturity effect applied to structural assessment
  • Recommendation: vitality monitoring within 12-15 months, further tomography within 24 months

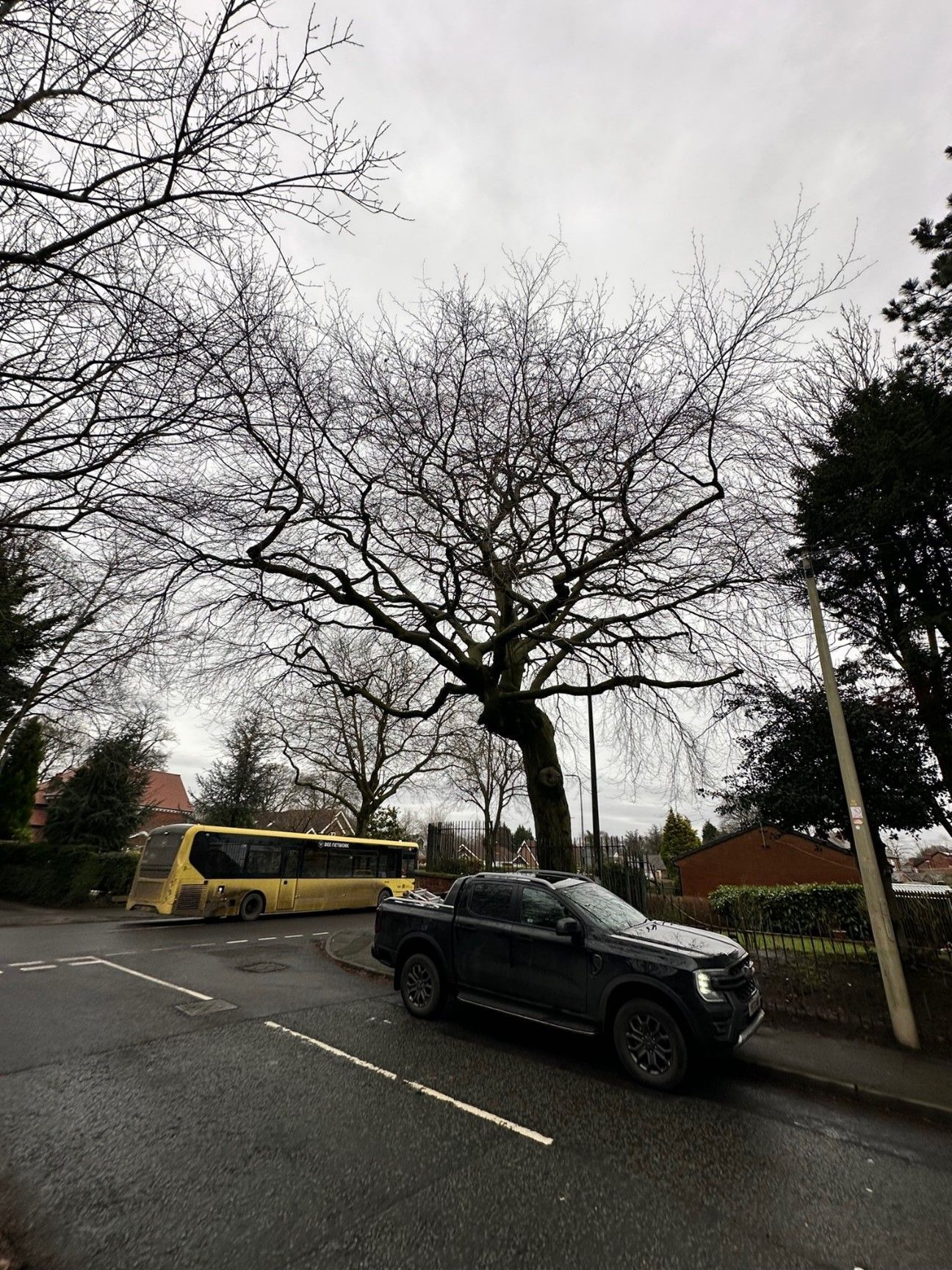

Copper Beech — Urmston:

  • Rinntech Resistograph R650 at four cardinal points at 270 cm
  • Internal cavity confirmed from Resistograph assessment
  • Minor to moderate resonance change on acoustic mallet testing consistent with internal dysfunction
  • Post-maturity radial growth providing ongoing increase in load-carrying capacity
  • Recommendation: vitality monitoring within 12 months, further Resistograph reassessment within 24 months


Outcome: Both trees retained. Defensible monitoring programmes established for both specimens — providing L&Q Group's Estate Officer with clear, documented management recommendations and reinspection intervals.
